DIN(LSA) Fiber Optic Components
DIN(LSA)
fiber optic connectors for telecommunications, CATV, LAN, MAN, WAN,
Test & Measurement, Industry, Medical and Sensors.
DIN(LSA) Connector kits
Specification:
|
|
Unit |
Multimode |
Single mode |
||
|
PC |
APC |
APC Low Loss |
|||
|
Insertion Loss (IL) |
dB |
Typ. 0.15Max 0.3 |
Typ. 0.15Max 0.3 |
Typ. 0.2Max 0.3 |
Max 0.15 |
|
Return Loss (RL) |
dB |
/ |
Min 50 |
Min 60 |
Min 65 |
|
Repeatability of IL |
dB |
Max ±0.2 |
Max ±0.1 |
||
|
Storage temperature |
°C |
-40～+85 |
|||
Connector types and Dimensions:
Connector Types:DIN/LSA Simplex 0.9mm
DIN/LSA Simplex 2.0mm
DIN/LSA Simplex 3.0mm
Ferrule Material:Zirconia and Metal
Ferrule Bore:80um to 1000um
Dust Cap: Plastic chain

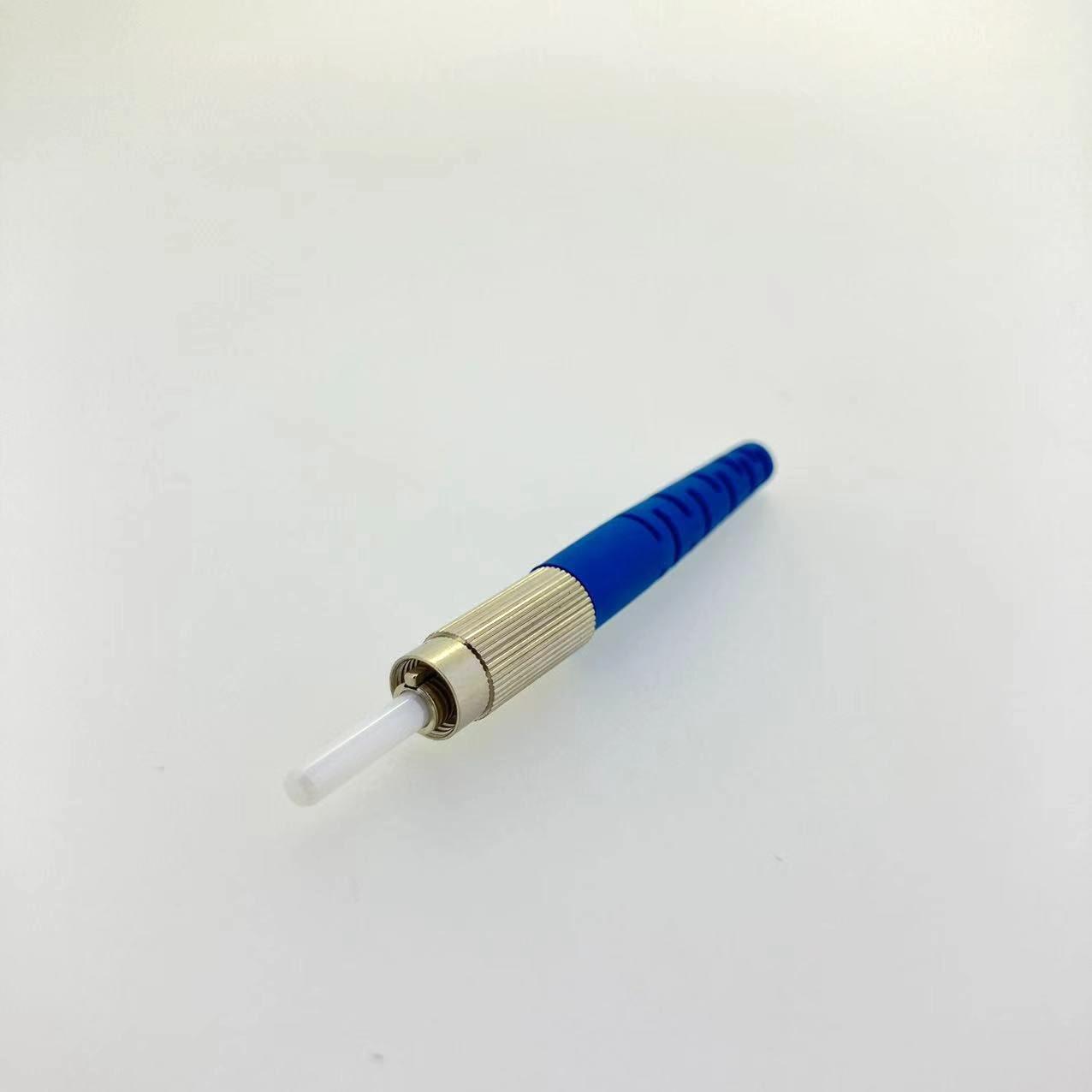

DIN/LSA Simplex 0.9mm
DIN/LSA
Simplex 2.0mm/ 3.0mm

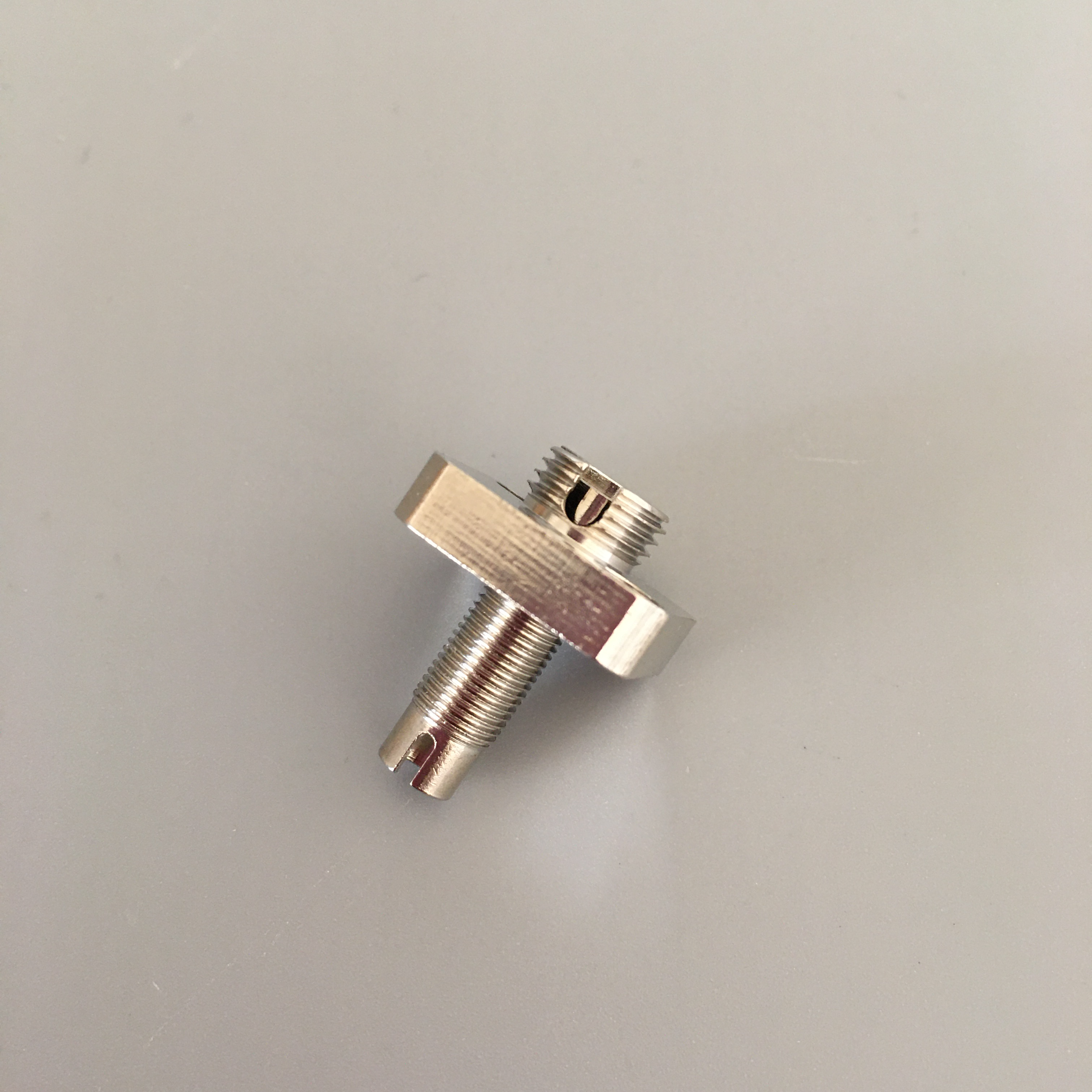

DIN/LSA Adapter
Specification:
|
|
Unit |
Multimode |
Single mode |
|
|
Standard Loss |
Low Loss |
|||
|
Insertion Loss (IL) |
dB |
Typ. 0.15Max 0.2 |
Typ. 0.15 Max 0.2 |
Typ. 0.08Max 0.15 |
|
Repeatability of IL |
dB |
Max ±0.1 |
||
|
Storage temperature |
°C |
-40～+85 |
||

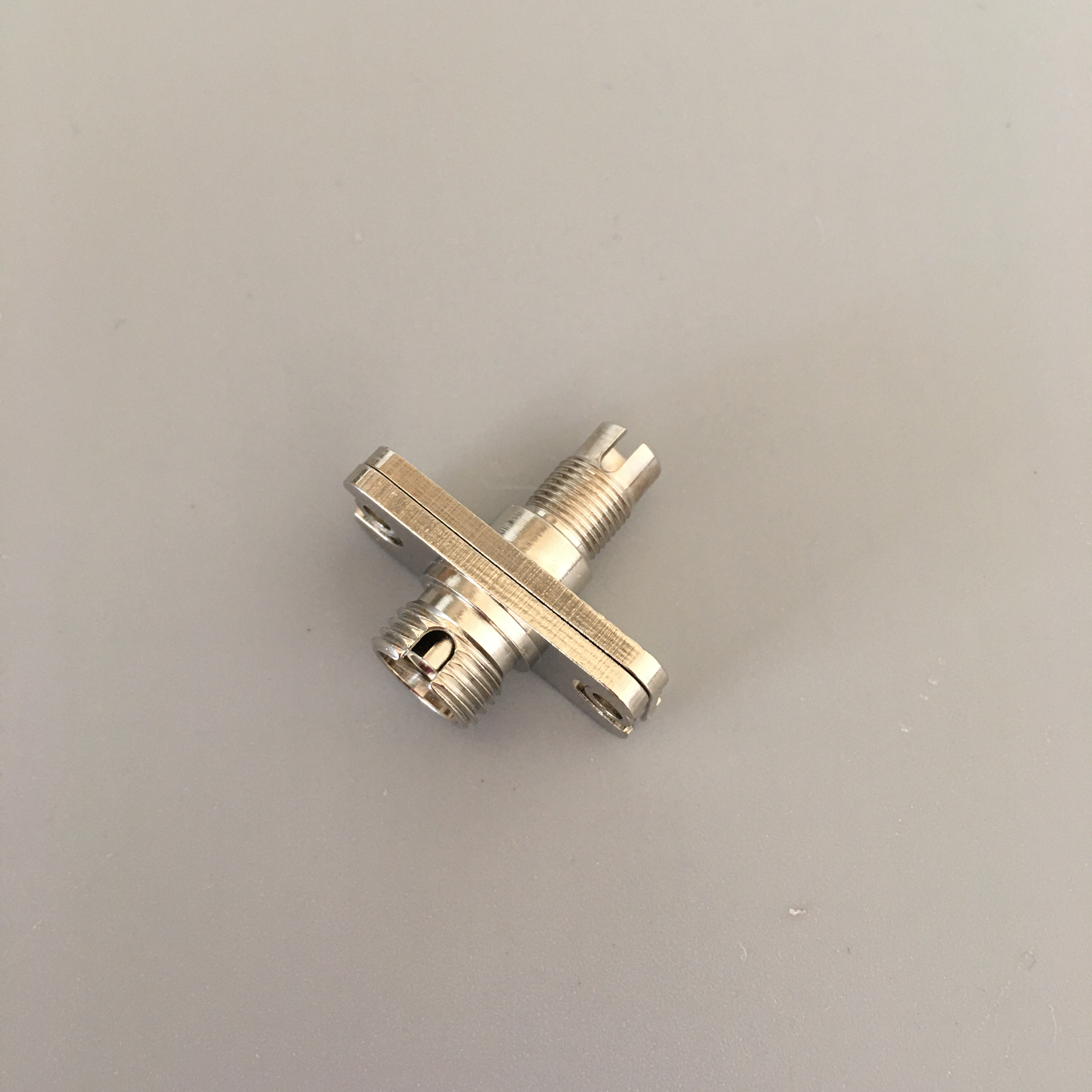

Adapter types and Dimensions:
Adapter Types:DIN adapter,Round type

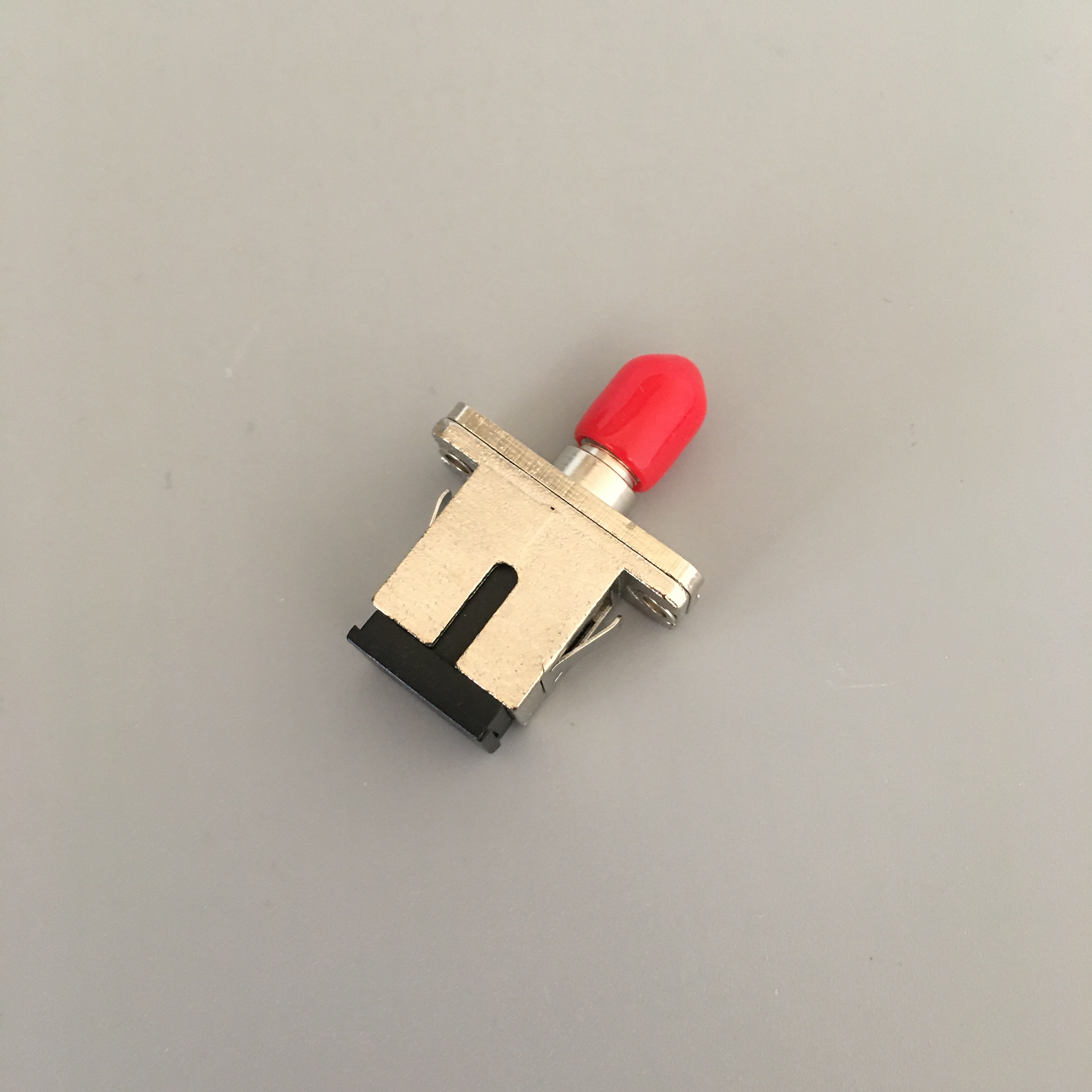

DIN-SC adapter, Flange type

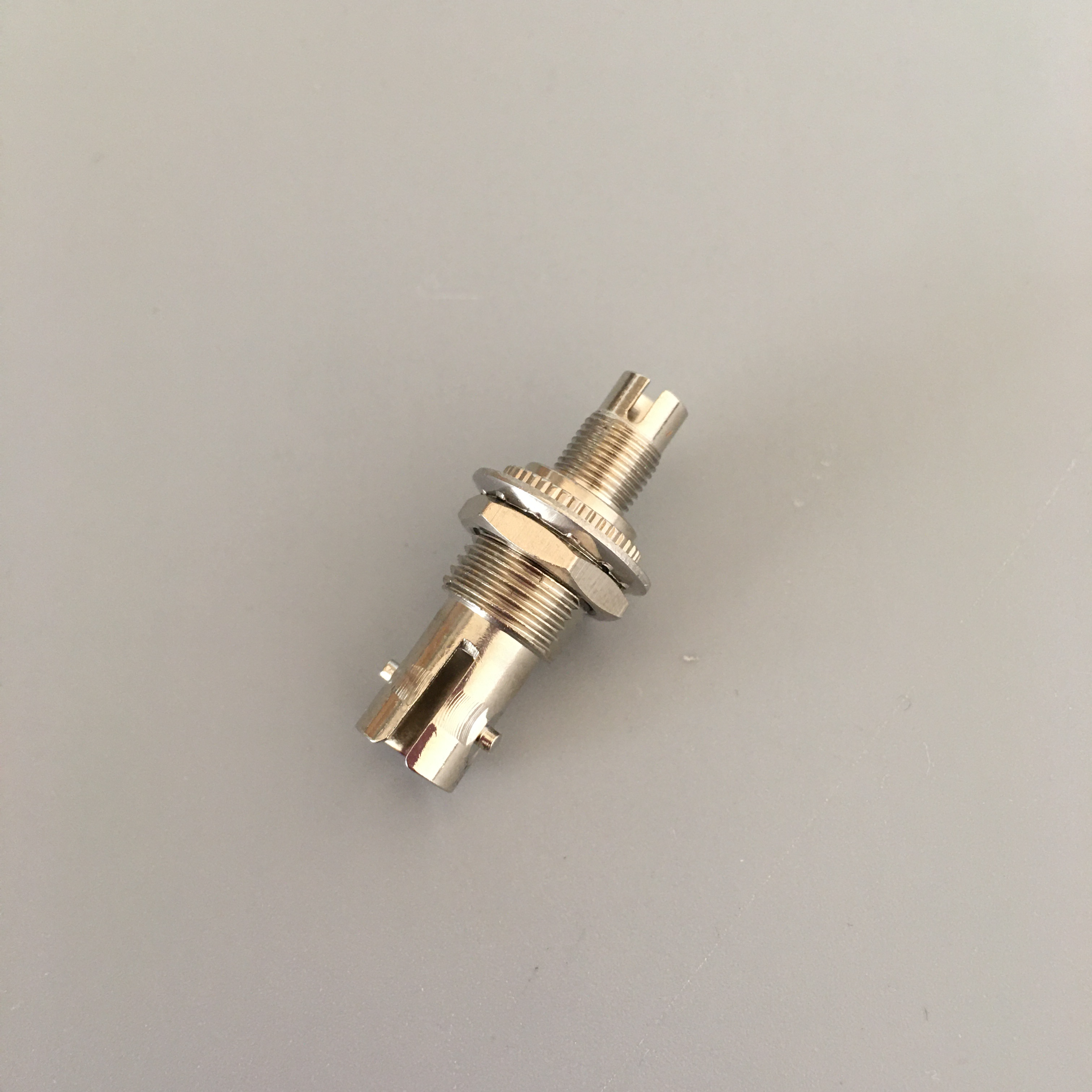

DIN-ST adapter, Round type
DIN-FC adapter, Square type
DIN-FC adapter, Round type
DIN-FC adapter, Flange type
Sleeve Material:Zirconia
Dust Cap: Red and black
E2000/LSH Patch cord
The
DIN fiber optic patch cables are made using DIN 47256 connectors.
These DIN (LSA) fiber products come with spring-loaded anti-rotation
keys. the ferrule materials have two types: Ceramic and Stainless
steel. and the ferrule bore, you can custom that from 125um to
1300um.
Specification:
Unit | Multimode | Single mode | ||
PC | APC | |||
Insertion Loss (IL) | dB | Typ. 0.15Max 0.3 | Typ. 0.15Max 0.3 | Typ. 0.2 Max 0.3 |
Return Loss (RL) | dB | / | Min 50 | Min 60 |
Repeatability of IL | dB | Max ±0.2 | ||
Storage temperature | °C | -40～+85 | ||
Environmental and mechanical conditions:
Measurement | Parameters |
high-low temperature cycle experiment | -40~+85°C / 168H |
high temperature and high humidity experiment | +85°C / 85% r.h / 168H |
salt spray test | 5% / 48H |
Tensile strength | 6.8KG / 2Min |
Proof at at 90° | 2.3~3.4KG /5s |
Twist | 1.35kg / 10cycles |
Bending | 10N / 2Min |
.
