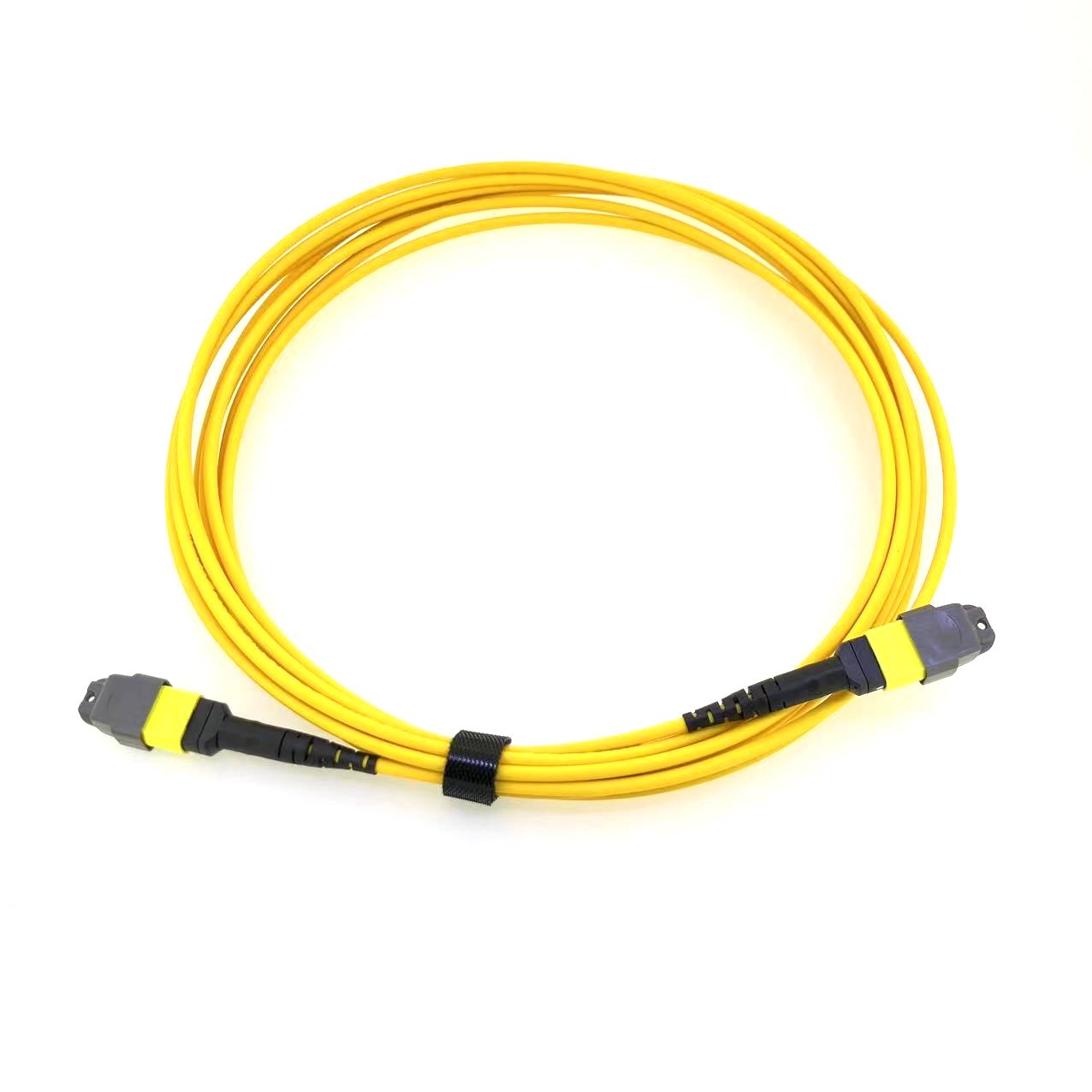

12ports OS2 MPO Trunk Cable
MPOs are multi-fiber push-on connectors short name, that are fiber connectors comprised of multiple optical fibers.
While defined as an array connector having more than 2 fibers, MPO Connectors are typically available with 12, 24, 48
or 72fibers for common data center and LAN applications.
MPO patch cord use MPO multi-fiber type connectors, each one of the connectors are used with ribbon fiber optic
cables or bundle fiber optical cable which contains multi-fiber in one single jacket, so the MPO Fiber Patch Cord greatly
saves space and are very convenient to use.
The 12F MPO-MPO trunk cable/Patch cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4, and 100G QSFP28 SR4 optics direct connections and high-density data center.
Specification:
Channel | 12ports | Fiber Type | Single mode |
Connector A | MPO/PC Female | Connector B | MPO/PC Female |
Ferrule’s Material | Plastic for MTP | Method | Polarity A / Polarity B |
Insertion Loss | MPO≤0.5dB, FC≤0.25dB | Return Loss | MPO≥45dB, FC≥50dB |
Cable Details:
Cable Jacket Color | Yellow |
Cable Jacket Material | LSZH |
Clad Diameter (microns) | 125 |
Core Diameter (microns) | 50 |
Number of Fibers | 12 |
Cable Diameter (mm) | 3.0 |
